AQUAMAP® 80xs

Part Number 010-01189-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

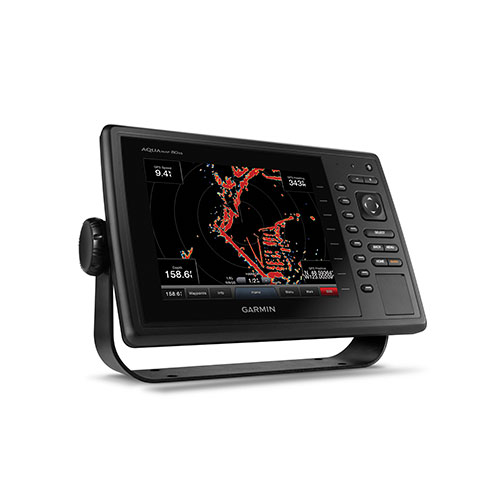

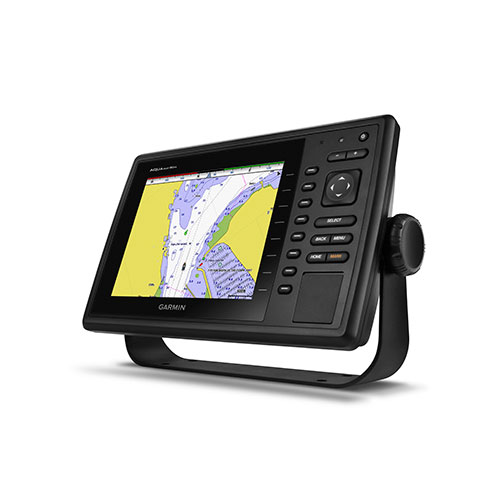

8" Keyed Chartplotter/Sonar Combo for Fishing

Keyed chartplotter/sonar combo with 8” color SVGA display
Preloaded worldwide basemap
Built-in Garmin HD-ID™ 1 kW sonar, CHIRP and ClearVü™ scanning sonar with CHIRP technology
High-sensitivity internal 10 Hz GPS/GLONASS receiver
Supports all Garmin marine radar

The AQUAMAP 80xs keyed chartplotter/sonar combo has a 8” color SVGA display and comes preloaded with a worldwide basemap. HD-ID, CHIRP and ClearVü with CHIRP sonar technology are built-in allowing you the flexibility to choose from several optional transducers.

Super-fast 10 Hz GPS/GLONASS

High-sensitivity 10 Hz GPS/GLONASS provides position and heading updates 10 times per second (Garmin GA38 is included & required for GPS/Chart-plotter function)

Extreme Sonar Capabilities

The built-in sonar capabilities of the AQUAMAP 80xs gives you the freedom and flexibility to choose from several optional transducers, including traditional, CHIRP and all-in-one HD-ID/ClearVü scanning sonar withCHIRP technology. Add a GCV™ 10 black box sonar for both ClearVü and SideVü™ scanning sonar with CHIRP technology (sold separately).
When used with a compatible CHIRP transducer (sold separately), AQUAMAP 80xs displays crystal-clear sonar images detailing fishing hot spots, ship wreckage or a diving location. With Garmin CHIRP technology, you get remarkable target separation and resolution at extraordinary depths, and can dial into specific frequencies to target certain species of sport fish. Bottom contours are more visible, even at speed, and signal noise can be suppressed at greater depths to provide a more timely interpretation of what’s below for safer navigation and better fishing.

Expand with Radar

Featuring a built-in radar port, AQUAMAP 80xs can be interfaced with Garmin’s line of affordable GMR™ marine radar systems (sold separately). Whether you’re adding radar now or in the future, you’ll enjoy the convenience of plug-and-play installation as well as the power, range and high-definition targeting of our proven radar offerings.

Networking

The AQUAMAP 80xs offers select networking capabilities that allow you to share features with other compatible AQUAMAP units, such as radar, GCV 10 ClearVü and SideVü scanning sonar, supplemental maps, and user data, such as waypoints, routes and tracks.

Special Fishing Features

Supported fishing features include boundary lines and color rejection.

Manual Download

Physical & Performance
Unit dimensions, WxHxD	11.5" x 7.4" x 2.9" (29.3 x 18.8 x 7.4 cm)
Display size, WxH	6.4" x 4.8"; 8.0" diagonal (16.2 x 12.1 cm; 20.3 cm diagonal)
Display resolution, WxH	800 x 600 pixels
Display type	SVGA display
Weight	3.5 lbs (1.6 kg)
Waterproof	(IPX7)
Receiver	10 Hz high-sensitivity
Antenna	with external connection
Mounting options	Bail, flat or flush
Power consumption	Max power usage at 10 Vdc: 14 W Typical current draw at 12 Vdc: 1.1 A Max current draw at 12 Vdc: 3.2 A

Maps & Memory
Preloaded maps
Accepts data cards	2 SD™ cards
Waypoints	12,000
Routes	200
Track log	25,000 points; 100 saved tracks

Features & Benefits
Garmin Radar compatible
Garmin Sonar compatible	(built-in) and GCV™ black box compatible
NMEA 2000® compatible
NMEA 0183 compatible
Garmin Marine Network™ compatible	(limited capabilities)
Garmin SmartMode compatible (customizable monitor presets)
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)
Tide tables
Garmin Meteor Audio System compatible
Supports Fusion Lync compatible marine radios
GSD™ Black Box sonar support
GCV™ Black Box sonar support
SiriusXM™ Weather & Radio compatible
BlueChart® Mobile (planning) compatible
Garmin Helm compatible
GRID™ (Garmin Remote Input Device) compatible
Wireless remote compatible
Wireless mouse compatible

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Frequencies supported	50/77/200 kHz, CHIRP (low, medium, high), ClearVü
Transmit power	1 kW traditional; 1kW CHIRP
CHIRP sonar technology	(Built-in)
ClearVü™	with CHIRP (built-in)
SideVü™	(with GCV™ black box, sold separately)
Voltage range	10-32 Vdc input
Maximum depth	1,750 ft @ 50 kHz, saltwater, Garmin dual freq transducer @ 500 W 2,700 ft @ 50 kHz, saltwater, Airmar B260 transducer @ 1000 W (depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

Connections
NMEA 0183 input ports	2
NMEA 0183 output ports	2
Video input ports
Video output ports
Wireless connectivity
Garmin Marine Network™ ports	1

In The Box

AQUAMAP 80xs with worldwide basemap
Power/data cable
Bail mount
Flush mount
Protective cover
Documentation
GPS Antenna & Mount Adapter

Accessories:
Transducers	Transducers
In-Hull Mount Transducers	Plastic In-hull Mount Transducer with Depth (8-pin) - Airmar M260 Plastic In-hull Mount Transducer with Depth (8-pin) - Airmar P79
Thru-Hull Mount Transducers	Bronze Thru-Hull Mount Transducer with Depth & Temperature (12° tilt, 8-pin) - Airmar B150M Bronze Thru-hull Transducer with Depth & Temperature (0° tilt, 8-pin) - Airmar B75M Bronze Thru-hull Mount Transducer with Depth, Speed & Temperature (8-pin) - Airmar B744V Airmar 1kW B260, Bronze, Thru-hull, with Fairing, Depth/Temp Plastic Thru-hull Mount Transducer with Depth & Temperature - Airmar P319 Bronze Tilted Thru-hull Transducer with Depth & Temperature (12° tilt) - Airmar B175M Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt) - Airmar B175H Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt) - Airmar B175M Bronze Tilted Thru-hull Transducer with Depth & Temperature (0° tilt) - Airmar B175L Bronze Tilted Thru-hull Transducer with Depth & Temperature (12° tilt) - Airmar B175H Bronze Thru-Hull Mount Transducer with Depth & Temperature (12° tilt) - Airmar B75L Bronze Thru-hull Mount Transducer with Depth, Speed & Temperature (Long Stem) - Airmar B744VL Bronze Thru-Hull Mount Transducer with Depth & Temperature (0° tilt) - Airmar B175H Bronze Thru-hull Mount Transducer with Depth & Temperature (8-pin) - Airmar B258 Bronze Thru-hull Transducer with Depth & Temperature (20° tilt) - Airmar B75M Bronze Tilted Thru-hull Transducer with Depth & Temperature (12° tilt) - Airmar B175L Bronze Thru-hull Mount Transducer with Depth & Temperature - Airmar B117 Plastic Thru-Hull Mount Transducer with Depth & Temperature (12° tilt) - Airmar P19
Tilted Element Transducers	Bronze Tilted Thru-hull Transducer with Depth & Temperature (0° tilt) Bronze Tilted Thru-hull Transducer with Depth & Temperature (12° tilt, 8-pin) Bronze Tilted Thru-hull Transducer with Depth & Temperature (12° tilt, 8-pin) Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt, 8-pin) Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt, 8-pin) Bronze Thru-hull Transducer with Depth & Temperature (12° tilt) Bronze Thru-hull Transducer with Depth & Temperature (12° tilt) Bronze Thru-Hull Mount Transducer with Depth & Temperature (0° tilt, 8-pin) Bronze Thru-Hull Mount Transducer with Depth & Temperature (0° tilt, 8-pin) Bronze Thru-Hull Mount Transducer with Depth & Temperature (20° tilt, 8-pin) Bronze Thru-Hull Mount Transducer with Depth & Temperature (20° tilt, 8-pin) Bronze Thru-Hull Mount Transducer with Depth & Temperature (0° tilt) Bronze Thru-Hull Mount Transducer with Depth & Temperature (0° tilt) Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt, 8-pin) Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt, 8-pin) Bronze Thru-Hull Mount Transducer with Depth & Temperature (0° tilt) Bronze Thru-Hull Mount Transducer with Depth & Temperature (0° tilt) Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt) Bronze Tilted Thru-hull Transducer with Depth & Temperature (20° tilt) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (20° tilt) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (20° tilt) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (12° tilt) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (12° tilt) Bronze Thru-hull Transducer with Depth & Temperature (12° tilt, 8-pin) Bronze Thru-hull Transducer with Depth & Temperature (12° tilt, 8-pin) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (0° tilt) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (0° tilt) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (20° tilt) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (20° tilt) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (0° tilt) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (0° tilt) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (12° tilt) Stainless Steel Thru-hull Mount Transducer with Depth & Temperature (12° tilt) - Bronze Thru-hull Transducer with Depth & Temperature (20° tilt, 8-pin) Bronze Thru-hull Transducer with Depth & Temperature (20° tilt, 8-pin)
Transom Mount Tranducers	Plastic Transom Mount Transducer with Depth, Speed & Temperature (Triducer, 8-pin) - Airmar P66 Plastic Transom Mount with Depth & Temperature (8-pin) - Airmar TM260 Garmin GT20-TM – Transom Mount ClearVü 500 W (CHIRP 455/800 kHz) Traditional 500 W (77/200 kHz) Transducer with Temp (8-pin) Plastic Transom Mount Transducer with Depth & Temperature (Dual Frequency, 8-pin) Plastic Transom Mount Transducer with Depth & Temperature - Airmar TM150M
Transducer Accessories	Step Mount Suction Cup Transducer Adapter Trolling Motor Mount (4/8-pin) Transom Mount Jack Plate Mount MotorGuide® Trolling Motor Transducer Adapter (8-pin)
Mounts	Bail Mount with Knobs (GPSMAP® 800 Series) Flat Mount Kit (GPSMAP® 800 Series) Flush Mount Kit (GPSMAP® 800 Series)
Cables	6-pin Transducer to 8-pin Sounder Adapter Wire Block Power Cable (8-pin) 8-pin Transducer Extension Cable (20ft)
Cases and Covers	Trim Piece Snap Cover (GPSMAP® 800 Series) Protective Cover (GPSMAP® 800 Series) SD™ Card Door
Antennas	GA™ 38 GPS/GLONASS Antenna
Sensors	Airmar T80 Water Temperature Probe (8-pin) Water Speed Sensor (8-pin)
Software	Chartplotter Update on SD™ Card
Garmin Marine Network	Marine Network Cable (6 feet) Marine Network Cable Connectors, 2-pack Marine Network Cable Coupler Cable Grommets
Apps	Garmin Helm
Sonar Modules	GCV™ 10 Scanning Sonar Module
Radar	GMR™ 1226 xHD2 Open Array Radar and Pedestal GMR™ 1224 xHD2 Open Array Radar and Pedestal GMR™ 624 xHD2 Open Array Radar and Pedestal GMR™ 424 xHD2 Open Array Radar and Pedestal GMR™ 24 xHD Radome GMR™ 18 xHD Radome GMR™ 606 xHD Open Array Radar and Pedestal GMR™ 406 xHD Open Array Radar and Pedestal
Autopilots	GHP™ Reactor Hydraulic Corepack GHP™ Reactor Hydraulic Corepack with SmartPump™ GHP™ Reactor Mechanical/Retrofit/Solenoid Corepack GHP™ Reactor Steer-by-wire Standard Corepack
Sensors and Boards	GPS 19x HVS

Download the File

Software License Agreement

By downloading, installing, or using this software, you agree to be bound by the terms and conditions of the following license agreement. Please read this agreement carefully.

Garmin Corporation ("Garmin") grants you a limited, non-exclusive license to use the upgrade software ("Software") in binary executable form in the normal operation of the applicable Garmin products. Title, ownership rights, and intellectual property rights in and to the Software remain in Garmin. This license is personal to you and you may make copies of the software only for your personal use. You agree that this license agreement does not need to be signed for it to take effect.

The software is provided on an "as is" basis without warranty of any kind — either expressed or implied — including, without limitation, any implied warranties of merchantability or fitness for a particular purpose. Garmin does not warrant the performance of the software or that the software will meet your requirements or operate error free.

You acknowledge that this Software is the property of Garmin and is protected under United States of America copyright laws and international copyright treaties. You further acknowledge that the structure, organization, and code of the Software are valuable trade secrets of Garmin and that the Software in source code form remains a valuable trade secret of Garmin. You agree not to decompile, disassemble, modify, reverse assemble, reverse engineer, or reduce to human readable form the Software or any part thereof or create any derivative works based on the Software.

You agree not to export or re-export the Software to any country in violation of the export control laws of the United States of America.

2018/01/29

Aquamap 80xs software update v3.90

Download(113 MB)

Aquamap 80xs software update v3.90

Release Note:

Fix hanging problem while Fantom radar connected
Support manual selection for Airmar transdduers
Fix phonetic keyboard issues
Improve coordinate accuracy while adding new waypoint

How to Update the Software?

Click on 'Download' and choose to save the file to your computer.
Choose a location where you can easily find the file, such as the 'My Documents' folder or 'C:\'.
Once the download is complete, go to the location where you saved the file.
Double-click on the downloaded file. This will automatically extract the files to C:\Garmin and run a program to transfer the software update to an SD card.
Power on the device and make sure all attached network devices are powered on as well.
Insert the card into the card slot of your primary device. Select 'Update Software' in the window that automatically displays. If you do not have a primary device with a card slot, please see your dealer.
After the update completes, all Garmin Marine Network devices and NMEA 2000 sensors will have the latest software. This ensures all of the devices will be able to communicate with each other. Note: If you have additional chartplotters connected to NMEA 2000 and not the Garmin Marine Network, you will have to independently update each chartplotter. After the update of the Garmin Marine Network completes, insert the update card into each NMEA 2000 chartplotter.

NOTE：

This software should only be uploaded to the unit for which it is intended. If this software is uploaded to a GPS unit other than the product it is designed for, it will render the unit inoperative.
If the software upload fails, and subsequent upload attempts prove unsuccessful, the unit may need to be returned to Garmin for service. Call Garmin at +886.2.26429199 ext2 or email Garmin. You may also contact Garmin authorised dealer for product support.
Before proceeding, please back up your waypoints and route data. You may back up the data by copying the GPX files in the Garmin disk to your computer. This software should only be uploaded to the unit for which it is intended. If this software is uploaded to a GPS unit other than the product it is designed for, it will render the unit inoperative.
