Fusion EL Series Marine Speakers

Part Number 010-02080-11

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

ENERGIZE YOUR BOATING EXPERIENCE

Enjoy quality audio and multicolor RGB LED lighting to enhance your boating experience with the EL Series speakers from Fusion.

Experience multicolor RGB LED lighting (sports style with LED model only) to brighten up your boating experience.

The injection-molded polypropylene cone provides clean, clear audio reproduction.

The shallow basket design provides increased versatility during installation.

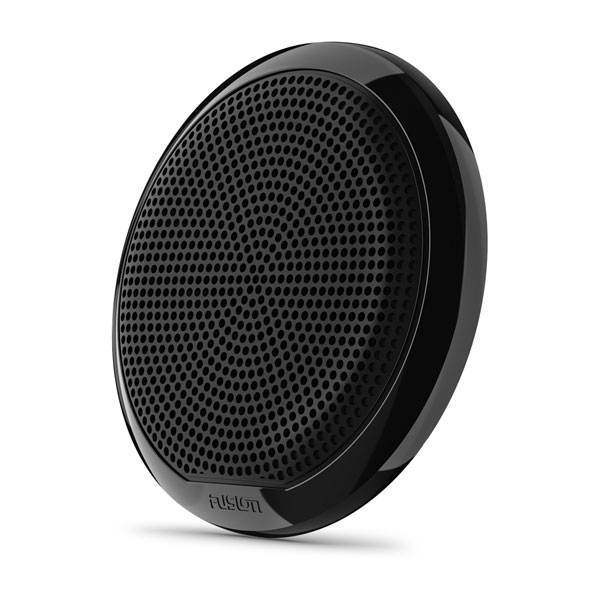

The speakers are available in a 6.5” design with both classic and sports style grilles.

Salt fog resistant and UV stable design for the harsh marine environment.

DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT

The EL Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.

DESIGNED TO COMPLY WITH ISO12216

Tested to international standards for pressure and water ingress, the EL Series speakers are designed and built for superior quality and robustness.

QUALITY MATERIALS AND ACOUSTIC ENGINEERING

The EL Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water.

Engineered for quality acoustics.

INJECTION-MOLDED POLYPROPYLENE (IMPP) CONE

By using a water-resistant IMPP cone it improves the robustness of the speaker, allowing for clean, clear audio reproduction.

LIGHTWEIGHT VOICE COIL

The lightweight design allows for higher sensitivity, resulting in increased power and efficiency to deliver an enhanced audio experience.

OPEN BASKET CONSTRUCTION

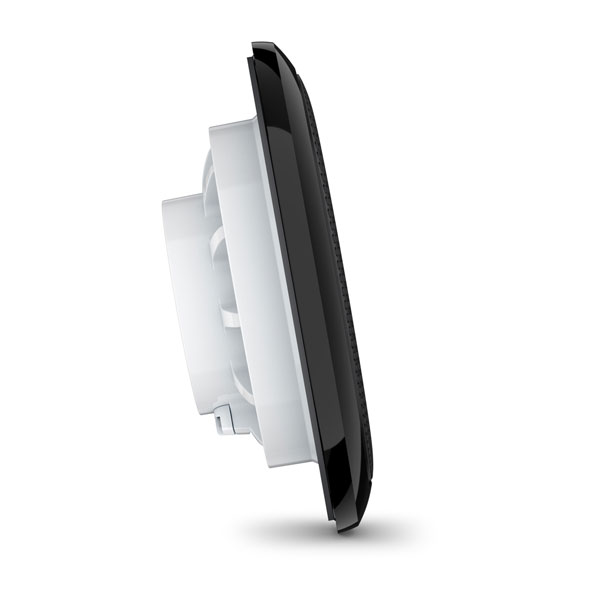

The optimized open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

Experience a variety of colors to match your audio.

MULTICOLOR RGB LED LIGHTING

The sports style EL Series speakers with RGB LED lighting provide bright and even LED illumination in a wide range of colors, letting you choose any color to match the mood and enhance your audio entertainment experience.

CONTROLLING THE RGB LIGHTING

Control the color (static or dynamic), brightness, light mode and speed by using the MS-RGBRC wireless remote control (sold separately).

Fusion RA210 – compact marine stereo

Learn More

Fusion RA70 Series – DIN-sized marine stereos.

Learn More

Experience Fusion BB100 – compact marine black box entertainment solution.

Learn More

General
Physical dimensions (Diameter x Depth)	Classic: 6.93” x 2.26” (176 x 57.5 mm) Sports: 6.93” x 2.32” (176 x 59 mm)
Weight	Classic: 1.21 lbs (0.55 kg) Sports: 1.26 lbs (0.57 kg)
Water and dust rating	IP65
Configuration	Full range
Speaker size	6.5"
Peak power (Watts)	80 W
RMS power (Watts)	20 W
Sensitivity (1 W / 1 m)	88 dB
Frequency response	45 Hz-16 kHz
Nominal impedance	4 ohms
Recommended amplifier power (RMS)	20-40 W/Ch
LED lighting	yes, RGB (sports gray with RGB model only)
LED supply voltage	10.8-16 VDC (sports gray with RGB model only)
LED load current @ 16 VDC	150 mA (sports gray with RGB model only)
Operating temperature range	32° to 122° F (0° to 50° C)
Voice coil diameter	0.79"
Cone material	Polypropylene cone with cloth surround
Compass-safe distance	100" (254 cm)
Warranty	1 year

Mounting Dimensions
Mounting diameter clearance	5.12" (130 mm)
Mounting depth clearance	1.69" (43 mm)

One pair of speakers (based on what you select)
12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
Two 20 ft (6 meter) speaker cables
Documentation

Fusion EL Series Marine Speakers
