GMR 434 xHD3

Part Number K10-00012-24

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

SCAN WITH THE MAGNETRON POWER OF GARMIN OPEN-ARRAY RADAR

Combining high-definition imaging with the latest Garmin platform technology, these robust 4’ and 6’ open-array radars offer superior weather, obstacle and traffic detection for mariners cruising or fishing offshore.

4-, 12- OR 25kW OUTPUT, UP TO 96-NAUTICAL MILE RANGE

SCAN AVERAGING TECHNOLOGY

IMPROVED TARGET-SIZE PROCESSING

SPLIT-SCREEN DUAL-RANGE DISPLAY

100-KNOT COMMERCIAL GRADE WIND RATING¹

QUIET OPEN-ARRAY DRIVE MOTOR

TOP FEATURES

NEW SCAN AVERAGING TECHNOLOGY

A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.

ANGULAR TARGET-SIZE ADJUSTMENT

Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales.

HIGH-PERFORMANCE ANTENNAS

The 100-knot wind-rated open-array antennas¹ have rotation speeds of 24 and 48 RPM for fast redraw rates, with max range up to 96 nautical miles on the 25-kW versions (up to 72 nautical miles on the 4- and 12-kW versions).

TRUE ECHO TRAILS

A historical “trail” of boats on the water is displayed on the screen, removing relative motion influence to help you quickly identify moving targets and potential collision threats.

DUAL RANGE WITH OVERLAY

A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.

DYNAMIC AUTO GAIN

Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters.

VIEW TARGETS WITH SUPERIOR CLARITY AND DETAIL

RADAR OVERLAY

See overlaid images on your chartplotter’s map screen (with appropriate sensors, sold separately).

HIGH-RESOLUTION RADAR

Pick out targets at a distance, thanks to narrow horizontal beamwidth and high antenna gain.

DUAL-RADAR SUPPORT

This provides redundancy and allows each display unit to pull data from different sources.

DYNAMIC SEA FILTER

Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.

AUTO BIRD GAIN

Locate flocks of birds at the water’s surface where baitfish are also likely to be found.

MARPA TARGET TRACKING

Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).

GUARD ZONE

Set the safety zone, and receive an alarm when an object enters the zone.

RANGE AND BEARING CUES

Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.

¹4-kW versions require optional equipment (sold separately) for 100-knot wind rating

General
Dimension	4' array: 1325 x 122 x 170 mm (52.2" x 4.8" x 6.7") 6' array: 1938 x 122 x 170 mm (76.5" x 4.8" x 6.7") Pedestal: 520 x 328 x 314 mm (20.5" x 12.9" x 12.4")
Weight	4' array and pedestal: 27.6 kg 6' array and pedestal: 29.6 kg
Waterproof	IPX6
Max Wind Load	80kt (100kt with optional voltage converter upgrade)
Antenna Length	4' array: 48" (122 cm) 6' array: 72" (183 cm)
Rotation speed (RPM)	24 and 48 rpm
Beam width	4' array: 1.8° horizontal, 23° vertical 6' array: 1.1° horizontal, 23° vertical
Maximum range	72 nm
Minimum range	20 meters
Radar type	Open-array
Electrical Features
Power Input	11-32 V DC
Power Consumption (standby)	18 W
Typical power consumption, transmitting (normal mode)	55 W
Transmit power	4 kW
Radar Features
Dual range	yes
Overlay	yes
Dual radar support
Auto Bird Gain
Auto Gain	Dynamic
MARPA target tracking	yes (requires heading sensor, sold separately)
Echo Trails	True
Programmable antenna parking
Target size
Scan averaging

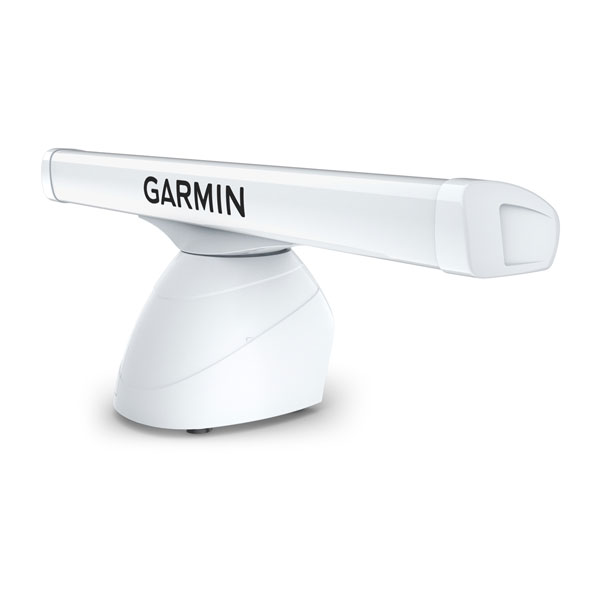

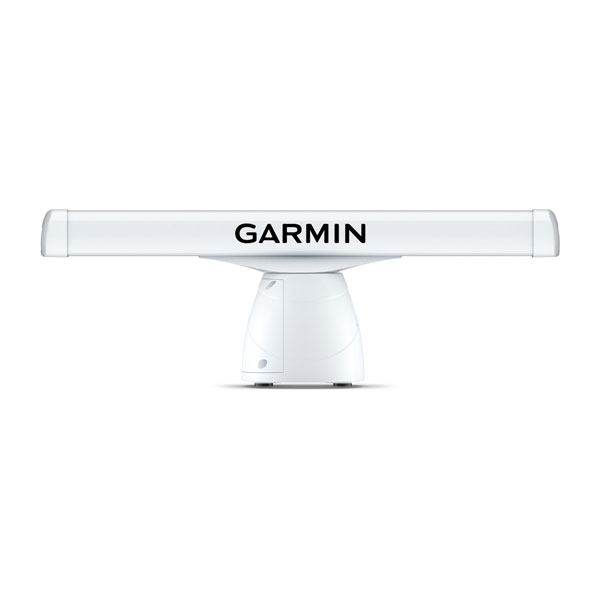

GMR xHD3 4 kW open array radar with 4’ or 6’ antenna (depending on model selected)
Power cable (15 m/49.21 ft)
Network cable (15 m/49.21 ft)
Garmin Marine Network Adapter Cable Small (Male) to Large (15cm)
Mounting hardware kit and template
Installation instructions
