GPSMAP 1223

Part Number 010-02367-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

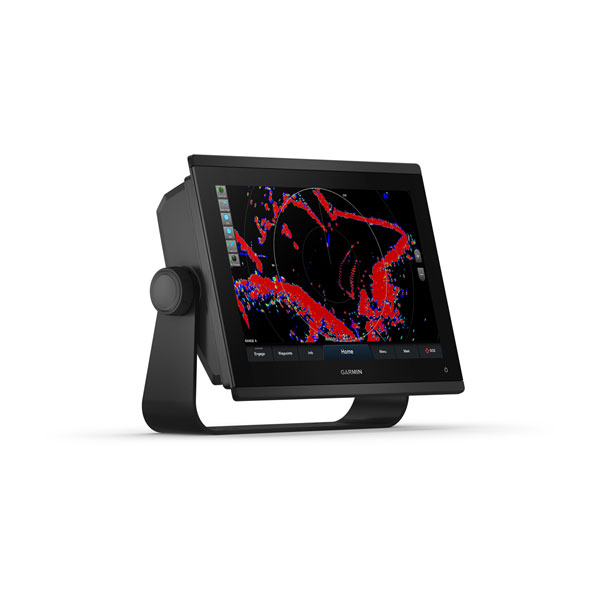

GET A SHARPER VIEW FROM YOUR CONNECTED HELM

With its sleek design, powerful processing and upgraded IPS display, this advanced 7”, 9” or 12” chartplotter integrates seamlessly into your Garmin marine system.

Easily integrate with more engines.

Connect to compatible third-party devices with OneHelm^™ digital switching.

Easily build your marine system using the best of network connectivity.

Navigate any waters with preloaded Garmin Navionics+^™ charts and mapping¹.

See below your boat with built-in sonar capabilities.

Manage your marine experience from nearly anywhere².

See the world below.

ULTRA HIGH-DEFINITION SCANNING SONAR

Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast color palettes to help distinguish fish from structure. GPSMAP X3 series also supports 1 kW CHIRP traditional sonar capabilities.

PANOPTIX SONAR SUPPORT

Pair with Panoptix or LiveScope easy-to-interpret live sonar (transducer required, sold separately) to see all around your boat in real time.

Made for your helm.

FASTER, SHARPER, SMARTER

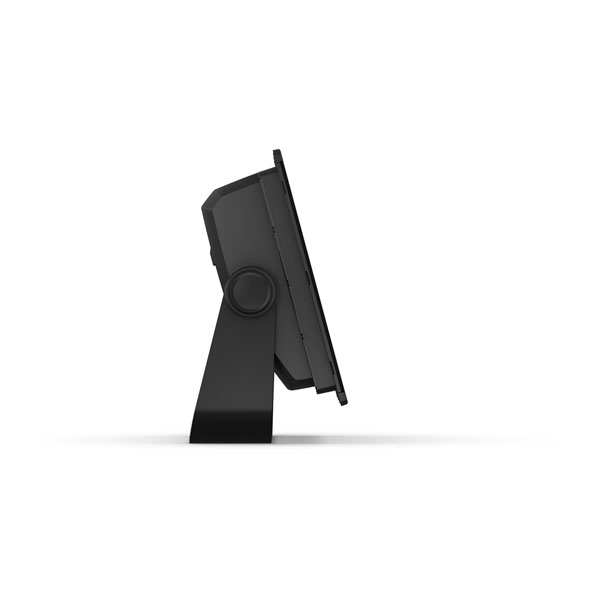

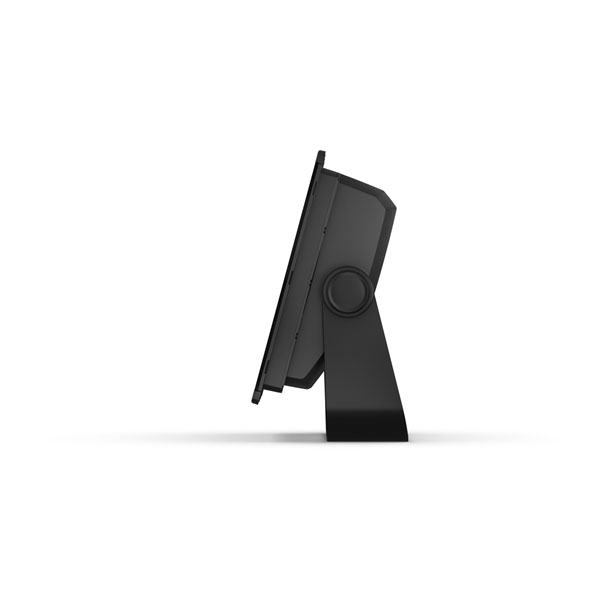

With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this plotter in a wider range of dash configurations.

IMPROVED DISPLAY OPTICS

New higher-resolution IPS displays for 9” and 12” plotters offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9” GPSMAP devices.

PRELOADED MAPPING

Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+ technology³ and a 1-year subscription for downloadable daily updates and more on select chartplotters.

OPTIONAL CHARTS AND MAPS

Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.

OPTIONAL RADAR BUNDLE

To help you avoid weather and traffic on the water, the compact 4 kW GMR 18 HD+ dome radar is available as a bundled option with your GPSMAP chartplotter/sonar package.

POWER-POLE SHALLOW WATER ANCHOR

By networking select Garmin chartplotters with a Force trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features⁶ from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and auto guidance⁷ end-of-route anchoring. Spend more time fishing, less time positioning.

Sail and navigate with ease.

GARMIN SAILASSIST SAILING FEATURES

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more³.

SAILING POLARS

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000 AND NMEA 0183 NETWORKS

Connect to compatible autopilots, digital switching, weather, Fusion-Link audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications, software updates, Helm, Garmin Quickdraw Community data and more⁴.

INTEGRATED ANT TECHNOLOGY

Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.

ENGINE CONNECTIVITY

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

ONEHELM FEATURE

This feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus digital switching, on one screen.

SEND INREACH DEVICE MESSAGES

Pair your inReach satellite communicator⁵ to your chartplotter, and type custom messages using your MFD’s on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.

Show the sea what you’re made of with the quatix 6X Solar smartwatch.

Learn More

Make confident decisions using GNX^™ Wind Instruments.

Learn More

¹On select models

²Requires ActiveCaptain app on your compatible smartphone paired to the GPSMAP 943xsv

³Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

⁴When paired with a compatible smartphone

⁵Active satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.

⁶Integration of these features requires purchase of a C-Monster GATEWAY through Power-Pole

⁷Auto guidance is for planning purposes only and does not replace safe navigation operations

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Purchase New Charts

General
Dimension	12.1” x 8.9” x 3.2” (30.8 x 22.8 x 8.2 cm)
Weight	6.6 lbs (3.0 kg)
Waterproof	IPX7
Touchscreen
Display Type	WXGA
Display Size	10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)
Display Resolution	1280 x 800 pixels
Mounting Options	Bail, flush or flat (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Input	Touchscreen
Maps & Memory
Accepts Data Cards	2 microSD cards
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
GPS
GLONASS
Galileo
Has built-in receiver
Receiver	10 Hz
NMEA 2000 Compatible
NMEA 0183 Compatible
Supports WAAS
Built-in Maps
Tide tables
Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Raster chart support
Chartplotter features
Smart Mode Compatible
AIS
DSC
Supports Fusion-Link™ compatible radios
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain® compatible	yes
GRID (Garmin Remote Input Device) compatible
Wireless Remote Compatible
Sailing Features
Spoken audio alerts
OneHelm support
Electrical Features
Power Input	10 to 32 Vdc
Typical current draw at 12 Vdc	1.67 A
Maximum current draw at 12 Vdc	2.159 A
Maximum power usage at 10 Vdc	26.5W
Sonar Features
Displays sonar
Traditional sonar (dual frequency/beam)	yes (with GCV™ black box, sold separately)
ClearVü	yes (with GCV™ black box, sold separately)
SideVü	yes (with GCV™ black box, sold separately)
Panoptix™ sonar
LiveScope
Connections

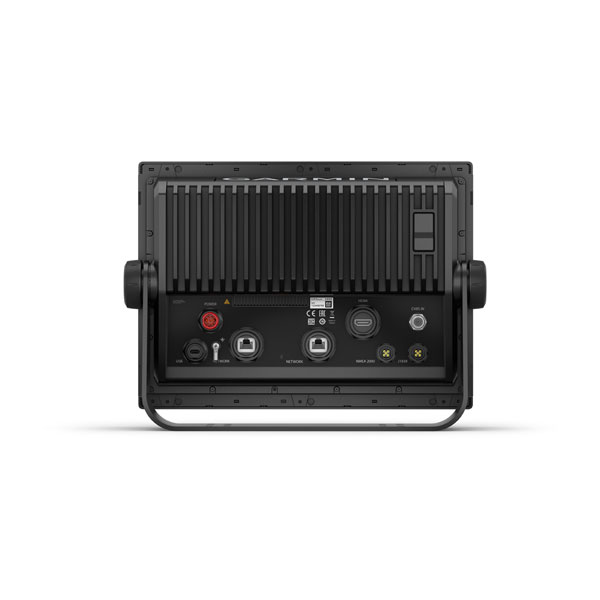

NMEA 2000® ports	1
Connections NMEA0183 Input Ports	1
NMEA 0183 output (Tx) ports	1
Video input ports	1 (BNC composite)
Video output ports	1 HDMI
J1939 ports	1
Garmin Marine Network Ports	2
USB ports
BLUETOOTH® pairing
ANT+ (Connectivity)
Garmin Wi-Fi network (local connection)

GPSMAP 1223 chartplotter
microSD™ card preinstalled
Power cable
NMEA 2000® T-connector
NMEA 2000 drop cable (2 meters)
Bail mount kit with knobs
Flush mount kit with gasket
Protective cover
Trim piece snap covers
