GPSMAP 8416

Part Number 010-02093-00

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

SERIOUS ANGLERS, CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

The easy-to-use, easy-to-install chartplotter/sonar combo delivers MFD performance in a combo-size package.

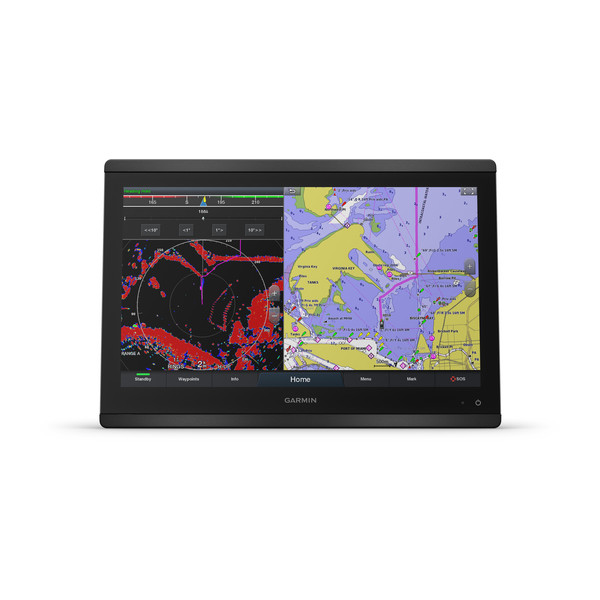

Get wider viewing angles and superior clarity on the touchscreen with a full HD in-plane switching (IPS) display.

Navigate confidently with built-in Garmin Navionics+^™ inland and coastal mapping¹.

Easily build your marine system using the best of network connectivity.

See below and around your boat with built-in sonar capabilities (transducers sold separately).

From ANT^® technology to Wi-Fi^® networking, there are countless ways to connect to your system.

With SmartMode^™ station controls, everything is designed to give you quick, one-touch access to the information you need.

Made for your helm.

HD IPS TOUCHSCREEN

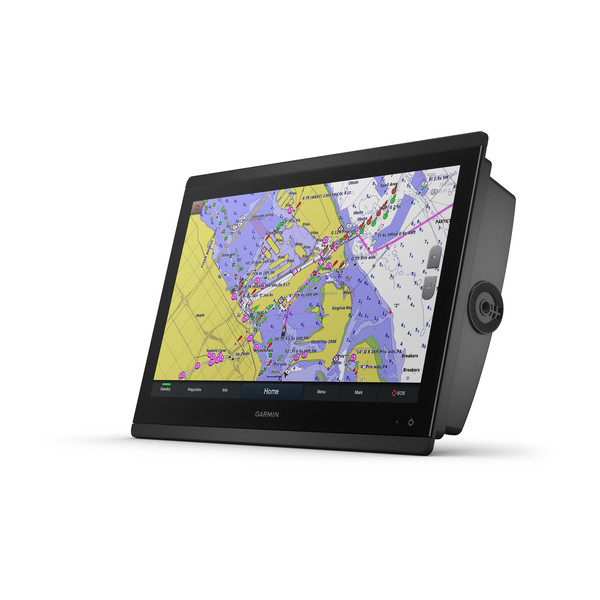

Available in sizes from 10” to 24”, this display offers wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses.

SIMPLE, ATTRACTIVE MOUNTING OPTIONS

You can install multiple displays, either flat mounted edge-to-edge for a sleek glass helm look or mounted flush — creating a stunning helm.

GRID 20 REMOTE CONTROL

The optional, easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system.

See the world below.

TRADITIONAL AND SCANNING SONAR SUPPORT

Get built-in support for 1-kW Dual-Channel CHIRP traditional sonar for superior target separation and ClearVü and SideVü scanning sonars to see up to 1,000’ below and around your boat at 260 kHz (requires transducer, sold separately).

LIVE SONAR SUPPORT

Pair your chartplotter with Garmin live sonar options (transducer sold separately) to see all around your boat in real time.

Sail and navigate with ease.

GARMIN SAILASSIST SAILING FEATURES

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more.

PRELOADED MAPPING

Experience unparalleled coverage and detail with built-in Garmin Navionics+ integrated coastal and inland mapping that includes Auto Guidance+ technology³ and a 1-year subscription for downloadable daily updates and more on select chartplotters.

OPTIONAL CHARTS AND MAPS

Bring a fresh new look and feel to your chartplotter with optional upgrade to Garmin Navionics Vision+ premium chart subscription, featuring downloadable high-resolution relief shading, satellite imagery, sonar imagery and more.

SAILING POLARS

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

Connect to everything on your boat.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.

NMEA 2000 AND NMEA 0183 NETWORKS

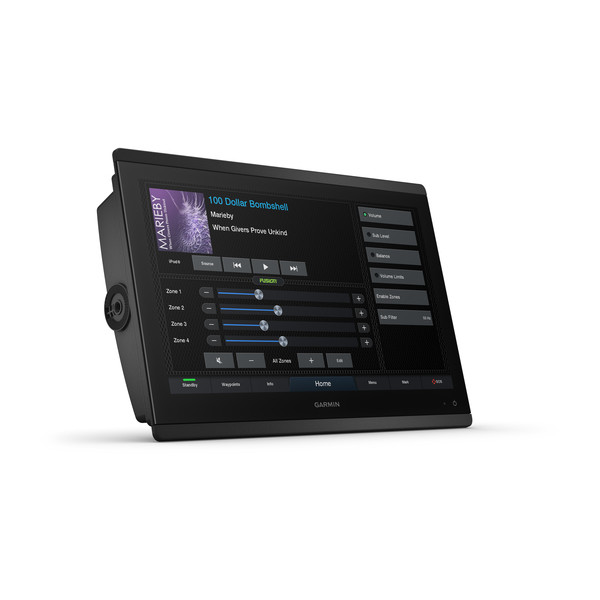

Connect to autopilots, digital switching, weather, FUSION-Link audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the all-in-one mobile app for access to the OneChart feature, smart notifications³, software updates, Helm, Garmin Quickdraw Community data and more.

INTEGRATED BLUETOOTH AND ANT TECHNOLOGIES

Connect with some of your favorite devices, such as quatix marine watches, gWind Wireless 2 transducers, GNX Wind marine instruments and wireless remote controls.

ONEHELM FEATURE

This feature brings together all the operations and capabilities of third-party devices, such as EmpirBus digital switching, on one screen.

SMARTMODE STATION CONTROLS

Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

POWER-POLE SHALLOW WATER ANCHOR

By networking select Garmin chartplotters with a Force trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features⁶ from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and auto guidance⁷ end-of-route anchoring. Spend more time fishing, less time positioning.

SEND INREACH DEVICE MESSAGES

Pair your inReach satellite communicator⁵ to your chartplotter, and type custom messages using your MFD’s on-screen keyboard. Access your contact list or enter an email, inReach address or phone number. You can also group messages by conversation for a texting-like experience.

Manage your marine experience using the free ActiveCaptain appLearn More

Find the right setup with our online system builder.

Learn More

Make confident decisions using GNX Wind Instruments.

Learn More

¹On select models

²Requires ActiveCaptain app on your compatible smartphone paired to a compatible GPSMAP chartplotter

³Auto Guidance+ is for planning purposes only and does not replace safe navigation operations

⁴When paired with a compatible smartphone

⁵Active satellite subscription required. Some jurisdictions regulate or prohibit the use of satellite communication devices. It is the responsibility of the user to know and follow all applicable laws in the jurisdictions where the device is intended to be used.

⁶Integration of these features requires purchase of a C-Monster GATEWAY through Power-Pole

⁷Auto guidance is for planning purposes only and does not replace safe navigation operations

Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

Purchase New Charts

General
Dimension	15.1" x 10.3" x 3" (38.5 cm x 26.3 cm x 7.6 cm)
Weight	9.6 lbs (4.4 kg)
Waterproof	IPX7
Touchscreen
Display Type	FHD, IPS
Display Size	13.6" x 7.7"; 15.6" diagonal, 34.5 cm x 19.5 cm; 39.7 cm diagonal
Display Resolution	1920 x 1080 pixels
Mounting Options	Flat and flush, bail with optional accessory (Garmin does not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.)
Maps & Memory
Accepts Data Cards	2 microSD cards
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
GPS
GLONASS
Galileo
Has built-in receiver
Receiver	10 Hz
NMEA 2000 Compatible
NMEA 0183 Compatible
Supports WAAS
Built-in Maps
Tide tables
Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Raster chart support
Chartplotter features
Smart Mode Compatible
AIS
DSC
Supports Fusion-Link™ compatible radios
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain® compatible	yes
GRID (Garmin Remote Input Device) compatible
Wireless Remote Compatible
Sailing Features
Spoken audio alerts
OneHelm support
Electrical Features
Power Input	10-32 Vdc
Typical current draw at 12 Vdc	1.3 A
Maximum current draw at 12 Vdc	6.0 A
Maximum power usage at 10 Vdc	52.1W
Sonar Features
Displays sonar
Traditional sonar (dual frequency/beam)	Yes (with external black box, sold separately)
ClearVü	yes (with compatible black box sonar)
SideVü	yes (with compatible black box sonar)
Panoptix™ sonar
LiveScope
Connections
NMEA 2000® ports	1
Connections NMEA0183 Input Ports	1
NMEA 0183 output (Tx) ports	1
Video input ports	1 (BNC composite); 1 HDMI (HDCP compliant)
Video output ports	1 HDMI
J1939 ports	1
Garmin Marine Network Ports	2
USB ports
BLUETOOTH® pairing
ANT+ (Connectivity)
Garmin Wi-Fi network (local connection)

GPSMAP 8416
Power cable
NMEA 2000® drop cable
NMEA 2000 T-connector
Flush mount kit
Sun cover
Trim piece snap covers
Documentation

GPSMAP 8416

GPSMAP 8416
