GPSMAP® 8624 MFD

Part Number 010-01512-01

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

SERIOUS CRUISERS, SAILORS AND SAIL RACERS DEMAND SERIOUS EQUIPMENT

The large-format multifunction display (MFD) lets you experience a beautifully powerful, completely networked helm at your fingertips.

Premium 24” full HD touchscreen display has the highest resolution on the marine market.

It’s compatible with premium maps and charts for the best in Garmin navigation.

Easily build your marine system using the best of network connectivity.

From ANT^® technology to Wi-Fi^® networking, there are countless ways to connect to your system.

Take the guesswork out of sailing with clear laylines and more — right on the screen.

With SmartMode^™ station controls, everything is designed to give you quick, one-touch access to the information you need.

Made for your helm.

FULL HD TOUCHSCREEN

The sunlight-readable, anti-glare display includes an auto-dimming feature for low light or nighttime use. An in-plane switching LCD display provides consistent, accurate colors from all angles.

SIMPLE, ATTRACTIVE MOUNTING OPTIONS

Install multiple displays with the low flush-mount profile, or flat mount them edge-to-edge for a sleek glass helm look. The maximum glass design puts a powerful, networked helm at your fingertips.

Connect to everything on your boat.

GARMIN MARINE NETWORK

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP cameras — among them.

NMEA 2000 AND NMEA 0183 NETWORKS

Connect to autopilots, digital switching, weather, your FUSION-Link audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN APP

Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart feature, smart notifications¹, software updates, Garmin Quickdraw Community data and more.

BUILT-IN CONNECTIVITY

It’s easy to connect to peripheral devices with built-in Wi-Fi connectivity, ANT technology, four wired Ethernet ports, NMEA 2000, HDMI and USB ports with complete network compatibility.

ONEHELM FEATURE

This feature brings together all the operations and capabilities of third-party devices, such as EmpirBus digital switching, on one screen.

SMARTMODE STATION CONTROLS

Get quick, one-touch access to the information you need to ease high-stress situations such as docking. You can incorporate networked sonar, radar, cameras, media and more.

CONNECT WITH RADAR

You can add your choice of compatible Garmin marine radar, including our powerful xHD2 open-array radars, GMR Fantom open-array radars with MotionScope technology or xHD dome radars.

CAMERA SUPPORT

Garmin supports select FLIR cameras for surveillance and situational awareness on your vessel. And with our Surround View Camera system, get live bird’s-eye view video plus 360-degree helm visibility.

Sail and navigate with ease.

GARMIN SAILASSIST SAILING FEATURES

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed, polars and more.

PRELOADED MAPPING

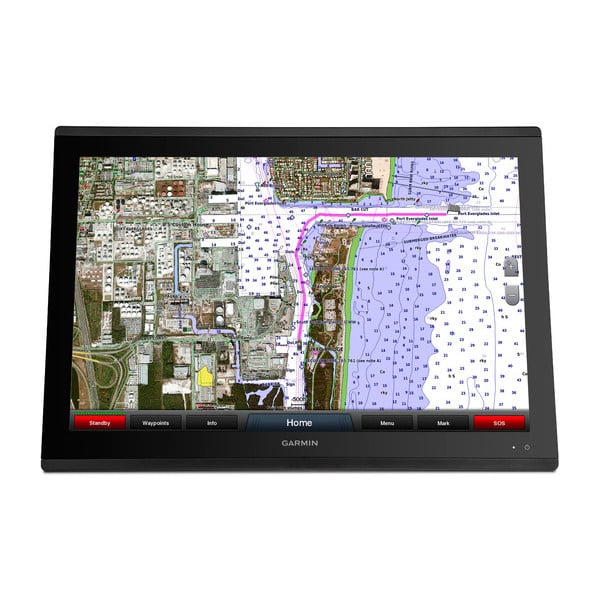

Experience unparalleled coverage and detail with preloaded BlueChart g3 coastal charts and LakeVü g3 inland maps featuring integrated Garmin and Navionics content and Auto Guidance technology².

OPTIONAL CHARTS AND MAPS

Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics+ or premium Garmin Navionics Vision+ cartography featuring integrated coastal/inland content, access to daily updates, Auto Guidance+ technology² and more.

QUICKDRAW CONTOURS

The free, easy-to-use software feature instantly creates your own personalized HD fishing maps with 1’ contours. There’s no special surveying expertise required. You just fish while it creates maps (requires transducer, sold separately).

MULTIPLE DEPTH RANGE SHADING

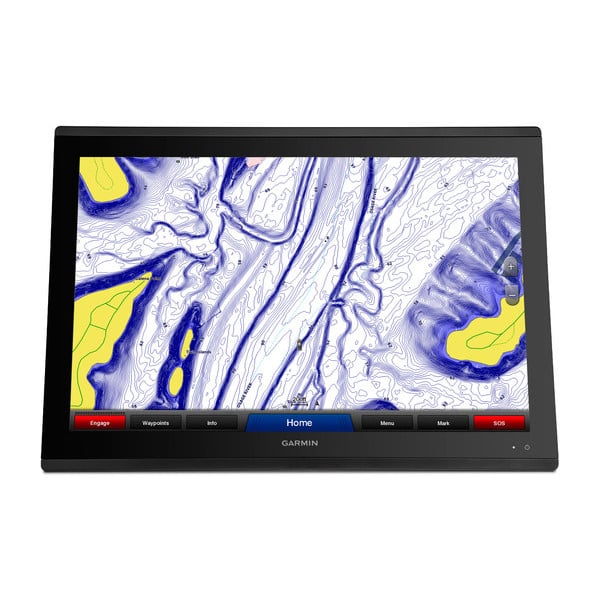

Designate up to 10 different depth ranges — each with its own color. This makes it easier to view target depths at a glance.

FAST, RESPONSIVE 10-HZ GPS

Your position and heading are refreshed 10 times per second to make your movement on the screen more fluid. Plus, GPS 24xd provides dual frequency precise location accuracy³ to within 1 meter.

SAILING POLARS

Use the polar table to see key data, including how fast you should go at a certain wind angle and speed — so you know whether you need to adjust sail trim.

POWER-POLE SHALLOW WATER ANCHOR

By networking select Garmin chartplotters with a Force trolling motor and your compatible Power-Pole shallow water anchoring system, you can access advanced boat control features from your plotter, including smart anchor auto-deployment, smart anchor jog, auto stow, anchor drag detection and auto guidance end-of-route anchoring. Spend more time fishing, less time positioning.

See the world below.

SONAR COMPATIBILITY

Find more fish when you pair with GSD 26 CHIRP professional sonar, GSD 24 advanced sonar, GCV 20 or GSD 25 ClearVü and SideVü scanning sonars or Panoptix all-seeing sonar.

Manage your marine experience using the free ActiveCaptain appLearn More

Make confident decisions using GNX Wind Instruments.

Learn More

Find the right setup with our online system builder.

Learn More

¹When paired with a compatible smartphone

²Auto Guidance is for planning purposes only and does not replace safe navigation operations

³< 1 meter CEP, < 3 meters 95%

Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Garmin is under license.

Purchase New Charts

General
Dimension	22.8" x 16.1" x 2.8" (60.0 cm x 41.0 cm x 7.1 cm)
Weight	18.95 lbs (8.60 kg)
Waterproof	IPX7
Touchscreen
Display Type	FHD, IPS
Display Size	20.4" x 12.8"; 24.0" diagonal, 51.8 cm x 32.5 cm; 61.0 cm diagonal
Display Resolution	1920 x 1200 pixels
Mounting Options	Flush or flat
Maps & Memory
Accepts Data Cards	2 SD Cards (with Garmin SD card reader accesory)
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
NMEA 2000 Compatible
NMEA 0183 Compatible
Built-in Maps
Built-in Auto Guidance
BlueChart (coastal)
LakeVu (inland)
Tide tables
Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard Mapping
Garmin Quickdraw Contours
Raster chart support
Chartplotter features
Smart Mode Compatible
AIS
DSC
Supports Fusion-Link™ compatible radios
GSD Black Box Sonar Support
GCV Black Box Sonar Support
ActiveCaptain® compatible	yes
GRID (Garmin Remote Input Device) compatible
Wireless Remote Compatible
Sailing Features
Spoken audio alerts
OneHelm support
Electrical Features
Power Input	10 to 35 Vdc
Typical current draw at 12 Vdc	6.1A
Maximum current draw at 12 Vdc	7.6A
Maximum power usage at 10 Vdc	87W
Sonar Features
Displays sonar
Traditional sonar (dual frequency/beam)	Yes (with external black box, sold separately)
ClearVü	yes (with GCV™ black box, sold separately)
SideVü	yes (with GCV™ black box, sold separately)
Panoptix™ sonar
LiveScope
Connections
NMEA 2000® ports	1
Connections NMEA0183 Input Ports	4
NMEA 0183 output (Tx) ports	2
Video input ports	1 (BNC composite); 1 HDMI (HDCP compliant)
Video output ports	1 HDMI
J1939 ports	1
Garmin Marine Network Ports	4
USB ports
BLUETOOTH® pairing
ANT+ (Connectivity)
Garmin Wi-Fi network (local connection)

GPSMAP 8624
Trim piece snap covers
GPS 24xd NMEA 2000 (with pole mount, flush mount and under deck mount adapters)
Protective cover
Flush mount hardware
Power cable
NMEA 2000 2 m backbone/drop cable
NMEA 2000 6 m backbone cable
NMEA 2000 power cable
NMEA 2000 T-connector & terminator kit
Documentation
