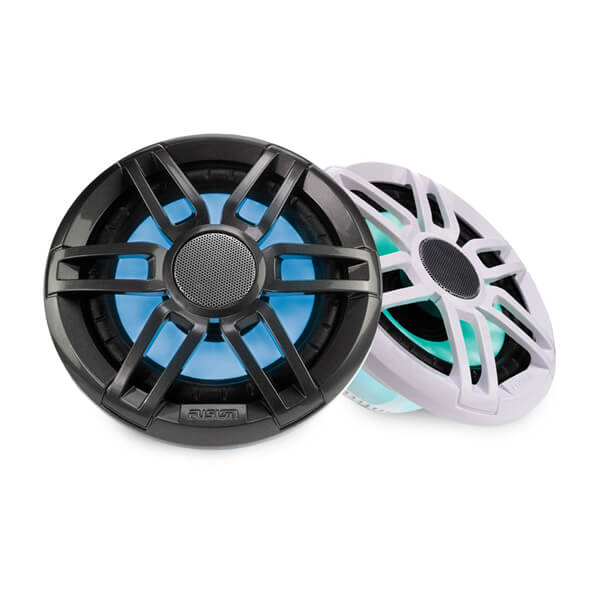

7.7" 240-Watt Sports Marine Speakers (Pair) with RGB LED Lighting

Part Number 010-02197-20

ONLINE STORE

Feature
Specs
In The Box
Update
Accessories

EXPERIENCE SOUND AND COLOR

Enjoy high-performance acoustics, enhanced protection from the environment and multicolor RGB LED lighting¹ all at a midrange price point with the XS Series speakers from Fusion.

Experience multicolor RGB LED lighting¹ to brighten up your boating experience.

The injection-molded polypropylene cone provides clean, clear audio reproduction.

The aluminum dome tweeter provides a smooth upper frequency response and increased efficiency.

With an increase in real power, the voice coil provides a high-quality sound experience.

The speakers are available in 4”, 6.5” and 7.7” designs with both classic and sports style² grilles.

Engineered to last season after season, the speakers include a 3-year warranty.

DESIGNED AND ENGINEERED TO TRUE-MARINE^™ STANDARDS

Built on the True-Marine design philosophy from Fusion, the XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.

DESIGNED TO COMPLY WITH ISO12216

Tested to international standards for pressure and water ingress, the XS Series speakers are designed and built for superior quality and robustness.

QUALITY MATERIALS AND ACOUSTIC ENGINEERING

The XS Series speakers incorporate high-quality materials and marine-specific design elements. This communicates not only their enhanced aesthetics but also their ability to reproduce high-performance audio while out on the water.

Engineered for high-performance acoustics.

INJECTION-MOLDED POLYPROPYLENE CONE (IMPP)

By using a translucent, water-resistant IMPP cone, we can incorporate consistent multicolor illumination¹. It also improves the robustness of the speaker, allowing for clean, clear audio reproduction.

ALUMINUM DOME TWEETER

The aluminum dome tweeter provides a smooth upper frequency response and increased efficiency, which deliver crystal-clear music reproduction.

OVERHUNG VOICE COIL

The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality sound experience.

FULLY SEALED CROSSOVER COMPONENTS

Fully sealed crossover components provide increased protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.

OPEN BASKET CONSTRUCTION

The optimized open back design allows for extended power handling and versatile mounting options with reduced mounting depth.

Experience a variety of colors to match your audio.

MULTICOLOR RGB LED LIGHTING

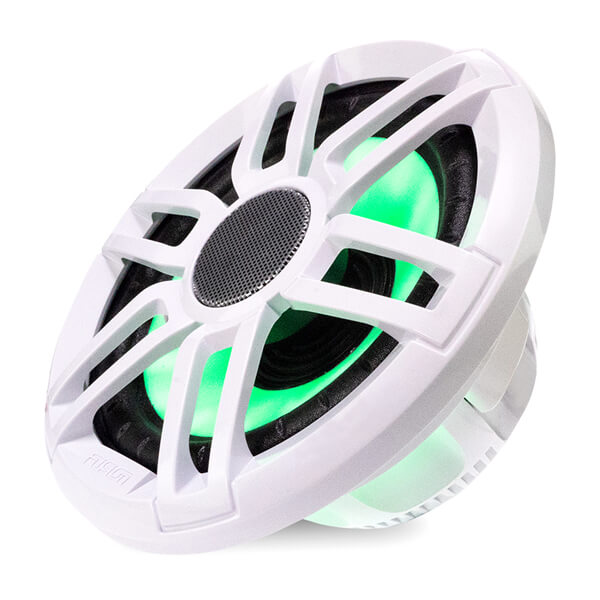

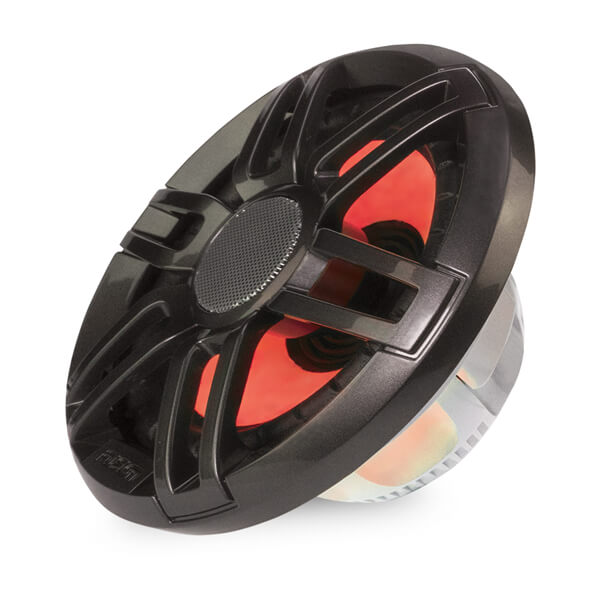

The sports style XS Series speakers with RGB LED lighting provide bright and even LED illumination in a wide range of colors, letting you choose any color to match the mood, set the tone or complement your music to enhance your audio entertainment experience.

CONTROLLING THE RGB LIGHTING

Control the color (static or dynamic), brightness, light mode and speed by using the optional MS-RGBRC wireless remote control (sold separately).

Enhanced aesthetics to match modern boat design trends.

SPORTS STYLE SPEAKERS WITH RGB LED LIGHTING

The XS Series sports style speakers with RGB LED lighting are available in 6.5” and 7.7” sizes with interchangeable sports white/sports gray grilles and feature multicolor illumination options.

SPORTS STYLE SPEAKERS

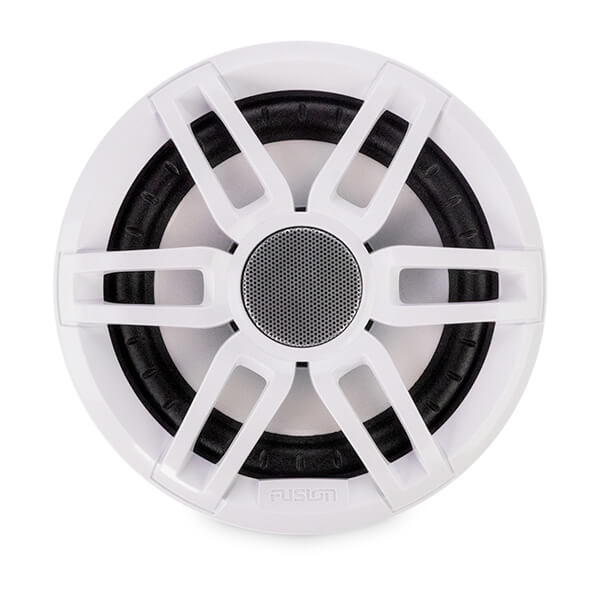

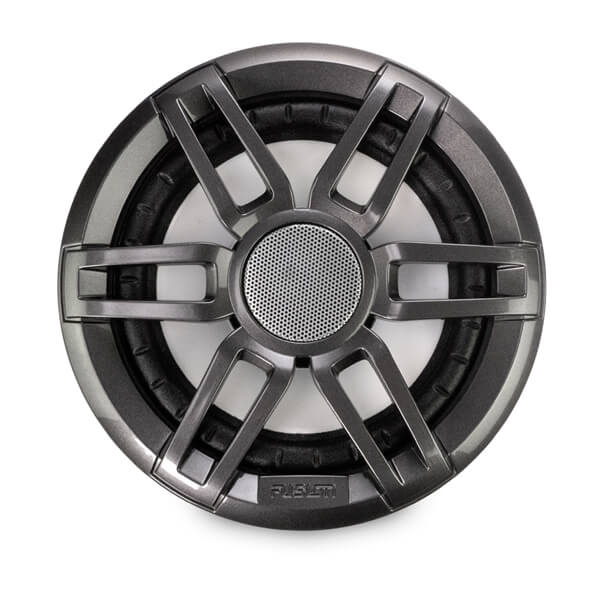

The XS Series sports style speakers are available in 6.5” and 7.7” sizes with interchangeable sports white/sports gray grilles for an attractive modern finish.

CLASSIC STYLE SPEAKERS

The XS Series classic style speakers are available in 4”, 6.5” and 7.7” sizes with interchangeable classic white/classic black grilles for a timeless, elegantly styled finish to blend with the aesthetics of your boat.

Find the right setup with our online system builder.

Learn More

Experience high-performance low frequencies with your XS Series subwoofers.

Learn More

Experience the most efficient and powerful marine amplifiers from Fusion.

Learn More

¹Available only on sports style XS Series speakers with RGB LED lighting

²Available only on 6.5” and 7.7” XS Series speakers

General
Physical dimensions (Diameter x Depth)	7.7" Classic: 7.72" x 3.70" (196 x 94 mm) 7.7" Sports: 7.72" x 3.82" (196 x 97 mm) 6.5" Classic: 6.97" x 3.19" (177 x 81 mm) 6.5" Sports: 6.97" x 3.27" (177 x 83 mm) 4" Classic: 5.31" x 2.68" (135 x 68 mm)
Water and dust rating	IP65
Configuration	Coaxial
Speaker size	XS-F77CWB/XS-F77SPGW/XS-FL77SPGW: 7.7" XS-F65CWB/XS-F65SPGW/XS-FL65SPGW: 6.5" XS-F40CWB: 4"
Peak power (Watts)	7.7" Speaker: 240 W 6.5" Speaker: 200 W 4" Speaker: 120 W
RMS power (Watts)	7.7" Speaker: 60 W 6.5" Speaker: 50 W 4" Speaker: 30 W
Sensitivity (1 W / 1 m)	7.7" Speaker: 92 dB 6.5" Speaker: 91 dB 4" Speaker: 87 dB
Frequency response	7.7" Speaker: 70 Hz-18 kHz 6.5" Speaker: 80 Hz-18 kHz 4" Speaker: 100 Hz-18 kHz
Nominal impedance	4 ohms
Recommended amplifier power (RMS)	7.7" Speaker: 25-200 W/Ch 6.5" Speaker: 20-150 W/Ch 4" Speaker: 15-80 W/Ch
LED lighting	yes (RGB; XS-FL77SPGW and XS-FL65SPGW only)
LED Supply Voltage	10.8-16 VDC (XS-FL77SPGW and XS-FL65SPGW only)
LED load current @ 14.4 VDC	150 mA (XS-FL77SPGW and XS-FL65SPGW only)
Operating temperature range	32° to 122° F (0° to 50° C)
Voice coil diameter	7.7": 1.18" 6.5": 1.18" 4": 1"
Cone material	7.7" / 6.5": Polypropylene cone with cloth surround 4": Polypropylene cone with rubber surround
Tweeter type	Aluminum dome
Compass-safe distance	7.7": 157.5" (400 cm) 6.5": 122" (310 cm) 4": 100.5" (255 cm)
Warranty	3 years

Mounting Dimensions
Mounting diameter clearance	7.7": 6.38" (162 mm) 6.5": 5.31" (135 mm) 4": 3.90" (99 mm)
Mounting depth clearance	7.7": 3.03" (77 mm) 6.5": 2.64" (67 mm) 4": 2.13" (54 mm)

Optimum Enclosure Recommendations
Sealed enclosure volume¹	7.7": 0.35 cubic ft (10 L) 6.5": 0.28 cubic ft (8 L) 4": 0.14 cubic ft (4 L)

¹Fully filled with absorption material

4" 120-watt Classic Marine Speaker

One pair of XS-F40CWB speakers
12 Phillips stainless steel mounting screws (3.5 mm x 25.4 mm (6 gauge x 1”))
Speaker grilles (1 pair classic white/1 pair classic black)
Documentation

6.5" 200-watt Classic Marine Speaker

One pair of XS-F65CWB speakers
12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
Speaker grilles (1 pair classic white/1 pair classic black)
Documentation

6.5" 200-watt Sports Marine Speaker

One pair of XS-F65SPGW speakers
12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
Speaker grilles (1 pair sports gray/ 1 pair sports white)
Documentation

6.5" 200-watt Sports Marine Speaker with RGB LED Lighting

One pair of XS-FL65SPGW speakers
12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
Speaker grilles (1 pair sports gray/1 pair sports white)
Documentation

7.7" 240-watt Classic Marine Speaker

One pair of XS-F77CWB speakers
12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
Speaker grilles (1 pair classic white/ 1 pair classic black)
Documentation

7.7" 240-watt Sports Marine Speaker

One pair of XS-F77SPGW speakers
12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
Speaker grilles (1 pair sports gray/ 1 pair sports white)
Documentation

7.7" 240-watt Sports Marine Speaker with RGB LED Lighting

One pair of XS-FL77SPGW speakers
12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm (8 gauge x 1”))
Speaker grilles (1 pair sports gray/1 pair sports white)
Documentation
